Aurum Valves

We are retailers of a qualitative variety of Aurum Valves. These are known for their exacting specifications, corrosion resistance, high tolerance and leak-proof nature. We make sure that these products are in compliance with the requisite industry standards. The clients can avail these at industry leading prices.

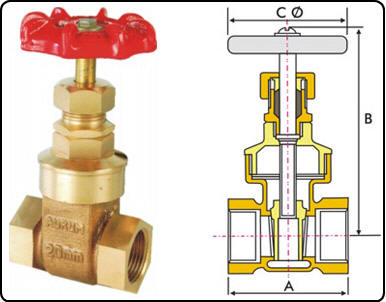

Gun Metal Gate Valve Screwed end (AU-GS01)

Features :

• Screwed Female Ends to BSP
• Smooth Handwheel operation
• Strictly conforming to IS:778 Class 1
• Solid wedge, Non Rising Stem & Screwed-in Bonnet
• Trouble free performance
• Best quality Teflon rope used as gland packing
• Back Seat Arrangement
• Size Range from 8mm to 100mm

Nom.Size	15	20	25	32	40	50	65	80	100
A	60	60	70	80	90	100	105	125	160
B	100	107	127	132	156	170	214	253	314
C	59	59	68	83	91	99	108	126	161

DESCRIPTION	MATERIAL	SPECIFICATIONS
SET SCREW	M.S.	IS: 1367
WASHER	M.S.	IS: 226
HAND WHEEL	C.I.	IS: 210 Gr.FG200
GLAND	G.M.	IS: 318 Gr. LTB2
GLAND NUT	G.M.	IS: 318 Gr. LTB2
STUFFING BOX	G.M.	IS: 318 Gr. LTB2
BONNET	G.M.	IS: 318 Gr. LTB2
BODY	G.M.	IS: 318 Gr. LTB2
WEDGE	G.M.	IS: 318 Gr. LTB2
STEM	BRASS	IS: 6912 Gr. FLB
GLAND PACKING	ASBESTOS	IS: 4687

Gun Metal Gate Valve Screwed end (AU-GS01)

Features :

• Flanged Ends to IS 778
• Smooth Handwheel operation
• Strictly conforming to IS:778 Class 1
• Solid Wedge, Non Rising Stem & Screwed-in Bonnet
• Trouble free performance
• Back Seat Arrangement
• Provision of Locking Arrangement & Open-Shut Indicator
• Size Range from 15mm to 100mm

Nom.Size	15	20	25	32	40	50	65	80	100
A	72	76	90	100	110	120	140	150	190
B	106	107	127	132	156	170	214	254	315
C	59	59	68	83	91	99	108	126	161

DESCRIPTION	MATERIAL	SPECIFICATIONS
SET SCREW	M.S.	IS: 1367
WASHER	M.S.	IS: 226
HAND WHEEL	C.I.	IS: 210 Gr.FG200
GLAND	G.M.	LTB2 OF IS:318
GLAND NUT	G.M.	LTB2 OF IS:318
STUFFING BOX	G.M.	LTB2 OF IS:318
BONNET	G.M.	LTB2 OF IS:318
BODY	G.M.	LTB2 OF IS:318
WEDGE	G.M.	LTB2 OF IS:318
STEM	BRASS	FLB OF IS:6912
GLAND PACKING	ASBESTOS	IS: 4687

Gun metal Gate Valve Split Wedge Type – Tanker Valve (AU-TV26)

Features :

• Screwed Female Ends to IS 554, BSP
• Smooth Handwheel operation
• Non-rising Stem & Screwed-in Bonnet
• Back Seat Arrangement
• Split type 2 pc. Seat for air tight seating with body
• Locking facility provided to lock handwheel
• Specially designed for oil, diesel & petrol tankers
• Size Range 65mm & 80mm

Nom.Size	65	80
A	90	98
B	215	235
C	110	132

DESCRIPTION	MATERIAL	SPECIFICATIONS
NUT	M.S.	IS: 1367
WASHER	M.S.	IS: 226
HAND WHEEL	C.I.	IS: 210 Gr.FG200
STEM	BRASS	IS: 6912 Gr.FG200
GLAND NUT	G.M.	IS: 318 Gr. LTB2
GLAND	G.M.	IS: 318 Gr. LTB2
BONNET	G.M.	IS: 318 Gr. LTB2
STEM CHECK NUT	G.M.	IS: 318 Gr. LTB2
BODY	G.M.	IS: 318 Gr. LTB2
WEDGE	G.M.	IS: 318 Gr. LTB2
GLAND PACKING	ASBESTOS	IS:4687
WEDGE NUT	G.M.	IS: 318 Gr. LTB2

Gun Metal Gate Valve Screwed Ends Hettersley Design (AX 01)

Features :

• Screwed Female Ends to BSP
• Smooth Handwheel operation
• Solid wedge, Non Rising Stem & Screwed-in Bonnet
• Trouble free performance
• Forged parts for longer life
• Best quality Teflon rope used as gland packing
• Back Seat Arrangement
• Size Range from 15mm to 50mm

Nom.Size	15	20	25	32	40	50
A	47	48	56	60	66	72
B	104	119	133	147	161	189
C	61	61	67	75	90	90

DESCRIPTION	MATERIAL	SPECIFICATIONS
Body	Gun Metal	IS: 138 Gr. LTB2
Spindle	Gun Metal	IS: 318 Gr. LTB2
Seat	Forged Brass	IS: 319
Bonnet	forged Brass	IS: 319
Gland Nut	Forged Brass	IS: 319
Gland Packing	Teflon	---------
Gland Bush	Teflon/Gun metal	--------
Wheel	Mild Steel	--------
Nut & Washer	Mild Steel	--------
