Mini Series - Self Priming Monoset Pumps

Features :

• Self primingupto 8.0 metres at mean sea level.
• Unique motor design- capacitor start and run (PSC) type eliminating centrifugal switch.
• Aluminium pressure die cast / Aluminiumetruded motor body.
• Brass Impeller
• High Quality and long life mechanical seal
• Fitted with thermal overloaded protector.

Standard specifications :

• Range: 0.009 to 1.1kW (0.125 to 1.5 HP)
• Pipe Size: 3x13 to 25x25 mm
• Total Head: 3 to 54 metres
• Capacity: Upto 5200 LPH
• Liquid: Clear water
• Operating Temperature: Suitable for 65 degree centigrade water
• Rotation: Clockwise when viewed from motor end
• Voltage Band: 180 to 240 volts for 1 PH & 350 to 440 volts for 3 PH

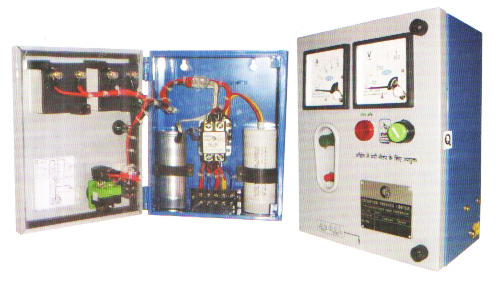

Single Phase Submersible Panels

Crompton Greaves panels are specially designed for Crompton Greaves make submersible pumps and any other standard quality submersible pumps. It is the safest and completely failure proof solution for long life and trouble free operations of the pump. Our design criteria has been built in absolute reliability for entire life of the equipment at affordable prices.

Benefits :

• Increase in motor life
• Increase in safety
• Easy operation
• Ease in monitoring

Features:

• Overload protection through circuit breaker
• Easy to install
• Made with SIEMENS or equivalent make Two Pole Contactor for smooth and reliable operation
• Start capacitor for torque induction by split phasing in control panel for water filled pumps
• Run capacitor improving P.F. and lower down the current intake
• EPDM gasket for protection against water entry

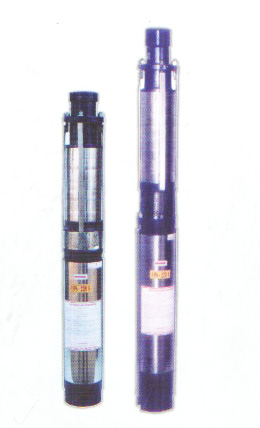

Submersible Pump sets

Crompton Greaves offers a wide range of Submersible pumpsets suitable for 75mm & 100mm borewell. Crompton Greaves Submersible pumpsets are specially designed, with the use of latest manufacturing techniques, to meet the water requirements of the different needs in domestic & agriculture use.

Features: (Motor)

• Motor suitable for wide voltage 160/240 V for 1 Ph and 350/440 for 3 Phase
• Energy efficient – saves power & electricity bills
• 3000 RPM (syn) speed
• Dynamically balanced rotor – vibration free, longer life & better efficiency
• Totally enclosed, water filled & oil filled, squirrel cage induction motor
• Cap start and run (PSC) for AC supply – Better starting torque at low volt
• Stainless steel stator body – rust preventive
• Special water resistance PVC insulted high quality copper winding wire
• Stainless steel rotor shaft – rust preventing and longer life
• Epoxy coated rotor –rust prevention & longer life
• Specially designed thrust pad – longer life
• Ease in rewinding – serviceability

Features: (Pump)

• Corrosion and abrasion resistant parts are made of stainless steel high strength engineering polymers and special alloy materials
• Designed for optimum efficiency – energy saver
• Modular construction – ease in assembly and dismantling
• NRV fitted in discharge outlet to prevent backflow

Standard Specifications:

• Suitable for 75/100 mm or bigger borewell
• Range:75mm – 0.37-0.75kW (0.5-1.0Hp) 100mm – 1P-0.25-2.2kW(0.33-3.0Hp) 3P-0.37-3.7kW (0.5-5.0 Hp)
• Supply: 225 Volts, 50Hz for 1 phase and 415 volts, 50Hz for 3 phase AC
• Speed: 2800 rpm (syn.)
• Total head range: 75mm – upto 78 metres , 100mm – upto 233 metres
• Capacity: 75mm – upto 50 lpm , 100mm – upto 330 lpm
• Discharge outlet size – 32 mm to 50mm
• Liquid clear water
• Motor squirrel cage water filled electric motor for 225 volts, 50 Hz, AC for 1 phase and 415 volts, 50 Hz, AC for 3 phase supply
